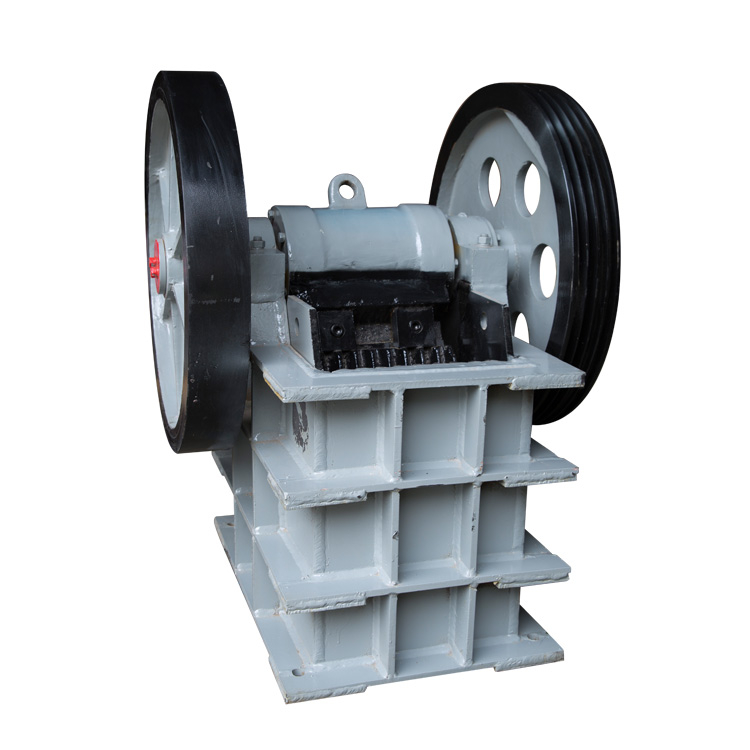

Stone Jaw Crusher of PE Series
BESTLINK
La trituradora es aplicable para el trituración rugosa y media de rocas y minerales con una resistencia a la compresión de menos de 245MPa.
| Tipo | Abertura de alimentación (mm) | Tamaño de alimentación máxima (mm) | Ajuste del rango de apertura de descarga (mm) | Capacidad (t/h) | Velocidad de rotación del eje excéntrico (R/min) | Energía del motor (KW) | Peso total (t) | Dimensión |
|---|---|---|---|---|---|---|---|---|
| PE-150X250 | 150x250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.6 | 720*660*850 |
| PE-200x300 | 200x300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1 | 910*750*990 |
| PE-200x350 | 200x350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.3 | 1000*870*990 |
| PE50X400 | 250x400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300*1090*1270 |
| PE-400X600 | 400x600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730*1730*1630 |
| PE-500x750 | 500x750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 |
| PE-600X900II | 600x900 | 500 | 65-160 | 50-180 | 250 | 55-75 | 17 | 2190*2206*2300 |
| PE-600X900 | 600x900 | 500 | 75-200 | 60-200 | 250 | 75 | 20 | 2290*2290*2400 |
| PE-750X1060 | 750x1060 | 630 | 80-140 | 115-330 | 250 | 110 | 29 | 2660*2430*2800 |
| PE-870X1060 | 870x1060 | 660 | 200-260 | 290-336 | 250 | 110 | 31.5 | 2810*2430*2800 |
| PE-900X1060 | 900x1060 | 685 | 230-290 | 160-400 | 250 | 110 | 33 | 2870*2420*2940 |
| PE-1000X1200 | 1000x1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*3876*3300 |
| PE-1200X1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200*3300*3500 |
| PE-150x750 | 150x750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
| PE-250X750 | 250x750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 |
| PE-250X1000 | 250x1000 | 210 | 25-60 | 16-52 | 330 | 37 | 7 | 1560*1950*1390 |
| PE50X1200 | 250x1200 | 210 | 25-60 | 20-61 | 330 | 45 | 8.5 | 2140*1660*1500 |
| PE-300x1300 | 250x1200 | 250 | 20-90 | 16-105 | 300 | 75 | 11 | 2720*1950*1600 |
